UNIVERSAL ROBOTS Collaborative Arms

PishRobot offers UNIVERSAL ROBOTS products in Iran

Meet the world’s no.1 in collaborative robots

Around the world thousands of UR robots work collaboratively
right alongside humans with no safety guards and no problems.

Automate almost anything

Easy programming

Patented technology lets operators with no programming experience quickly set up and operate UR robots with intuitive, 3D visualization. Simply move the robot arm to desired waypoints or touch the arrow keys on the easy-to-use touchscreen tablet.

Fast set up

Universal Robots has revolutionized robot set-up, reducing typical robotic deployment measured in weeks to a matter of hours. The average set-up time reported by Universal Robot's customers is only half a day. The out-of-box experience for an untrained operator to unpack the robot, mount it, and program the first simple task is typically less than an hour.

Flexible deployment

Don’t be limited by dedicated robotics. Universal Robots are lightweight, space-saving, and easy to re-deploy to multiple applications without changing your production layout. Moving the robot to new processes is fast and easy, giving you the agility to automate almost any manual task, including those with small batches or fast change-overs. The robot is able to re-use programs for recurrent tasks.

Collaborative and safe robots

Now you can replace human operators in dirty, dangerous, and dull jobs to reduce repetitive strain and accidental injuries. Eighty percent of the thousands of UR robots worldwide operate with no safety guarding (after risk assessment), right beside human operators. The safety system of UR robots is approved and certified by TÜV (The German Technical Inspection Association).

Fastest payback in the robot industry

Universal Robots gives you all the advantages of advanced robotic automation, with none of the traditional added costs associated with robot programming, set-up, and dedicated, shielded work cells. Finally, robotic automation is affordable for small and medium sized enterprises.

Universal Robot's three different collaborative robots are easily integrated into existing production environments.
With six articulation points, and a wide scope of flexibility, the collaborative robot arms are designed to mimic the range of motion of a human arm.

Select the size of the collaborative robot arm that best meets your needs below.

Universal Robots Brochure

TÜV NORD Certificate

Collaborative robots from Universal Robots

	UR3 ROBOT ARM	UR5 ROBOT ARM	UR10 ROBOT ARM
Working radius	500mm / 19.7ins	850mm / 33.5ins	1300mm / 51.2ins
Payload	3kg / 6.6lbs	5kg / 11lbs	10kg / 22lbs
Weight	11kg / 24.3lbs	18.4kg / 40.6lbs	28.9kg / 63.7lbs
Footprint	128mm / 4.6ins	149mm / 5.9ins	190mm / 7.5ins
Axis (DOF)	6	6	6

UR3 ROBOT

Ultra flexible table-top robot

UR3 is Universal Robot's new, smaller collaborative table-top robot for light assembly tasks and automated workbench scenarios. The compact table-top robot weighs only 24.3 lbs (11 kg), but has a payload of 6.6 lbs (3 kg), 360-degree rotation on all wrist joints and infinite rotation on the end joint. These unique features make UR3 the most flexible, lightweight, collaborative table-top robot to work side-by-side with employees in the market today. It’s an ideal choice for applications that require 6-axis capabilities where size, safety and costs are critical.
The UR3 collaborative robot is an optimal assistant in assembly, polish, glue, and screw applications requiring uniform product quality. The new table-top robot can also be used in a separate work station mounted on the table, picking, assembling and placing parts in optimized production flows. Because of its compact form and easy programming, it’s easy to switch it between tasks to meet agile manufacturing needs making total cost of ownership low and payback period ultra fast.
The UR3 robot applications span manufacturing industries from medical devices to circuit boards and electronic components

Did you know?
The UR3 robot is built with the same proven collaborative technology as Universal Robot's UR5 and UR10 robot arms. All three collaborative robots feature the same safety system and 0.1 mm repeatability. UR3 has a default force sensing of 150 Newton but can be set to stop if it encounters a force as low as 50 Newton in its route.

UR3 table-top robot in short :
- Automate tasks up to 6.6 lbs (3 kg)
- Reach radius of up to 19.7 in (500 mm)
- Fastest payback in the industry

Technical Specifications ...

UR5 ROBOT

A highly flexible robot arm

The lightweight, flexible and collaborative industrial robot - UR5 - from Universal Robots lets you automate repetitive and dangerous tasks with payloads of up to 5 kg. The UR5 is ideal to optimize low-weight collaborative processes, such as: picking, placing and testing.
With a working radius of up to 850mm, the UR5 collaborative robot puts everything within reach, freeing up your employees’ time to add value to other stages of the production.
The UR5 from Universal Robots is very easy to program, offers fast set up, is collaborative and safe, and like Universal Robot's other collaborative robots, offers one of the fastest payback times in the industry.

UR5 robot in short :
- Automate tasks up to 5 kgs (11 lbs)
- Reach radius of up to 850 mm (33.5 in)
- Fast payback time

Technical Specifications ...

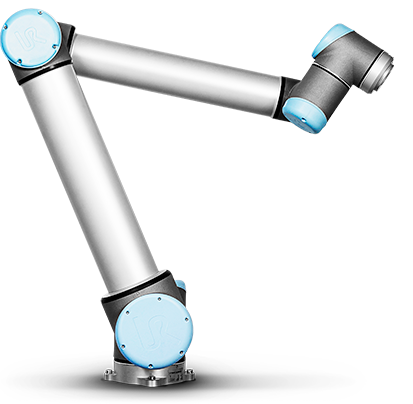

UR10 ROBOT

A collaborative industrial robot

The Universal Robots UR10 is Universal Robot's largest industrial robot arm, designed for bigger tasks where precision and reliability are still of paramount importance. With the indstrial robot arm - UR10 - you can automate processes and tasks that weighs up to 10 kg.
Heavier-weight collaborative processes, such as: packaging, palletizing, assembly and pick and place are all well suited to the UR10 industrial robot. With a reach radius of up to 1300mm, the UR10 industrial robot is designed to be more effective at tasks across a larger area. You can therefore save time on production lines where distance can be a factor.

Did you know?
The Universal Robots UR10 is easy to program, offers fast set up, is collaborative and safe, and like Universal Robot's other collaborative robots, offers one of the fastest payback times in the industry. You can read more about the advantages of installing a UR10 industrial robot arm on the "UR robots benefit" page.

UR10 robot in short :
- Automate tasks up to 10 kgs (22 lbs)
- Reach radius of up to 1300 mm (51 in)
- Fast payback time
- Flexible deployment
- Easy to program

Technical Specifications ...
